HAVŞA BAŞ DELME ZIMBALARI
Round precision piercing punches
|
Metal
Steel
|
HWS=%12 Krom alaşımlı çelik
HWS=%12 Chrome alloy steel
HSS=Yüksek hız çeliği
HSS=High speed steel |
|
|
Uzunluk
Length
|
Standart Boylar:
71-80-100-HSS/130-160-200
|
|
| |
|
|
Sertlik Derecesi
Hardness
|
HWS
Gövde: 60/62 HRC
Kafa : 45±5 HRC
HSS
Gövde: 60/64 HRC
Kafa : 52±3 HRC |
|
|
Yüzey
Finish
|
Yüzey: Sertleştirilmiş ve taşlanmış
Kafa: Sıcak dövme |
|

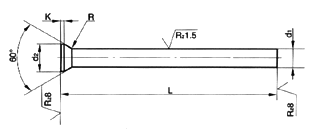

DIN
9861
Form D - HWS - HSS
|
d1 h6
|
d2
|
K +0,2
|
L + 0,5
|
|
71
|
80
|
100
|
130
|
160
|
200
|
|
0,7
|
1,3
|
0,2
|
|
|
|
|
|
|
|
0,8
|
1,4
|
0,4
|
|
|
|
|
|
|
|
0,9
|
1,6
|
|
|
|
|
|
|
|
1,0/1,1
|
1,8
|
0,5
|
|
|
|
|
|
|
|
1,2/1,3
|
2,0
|
|
|
|
|
|
|
|
1,4/1,5
|
2,2
|
|
|
|
|
|
|
|
1,6/1,7
|
2,5
|
|
|
|
|
|
|
|
1,8/1,9
|
2,8
|
|
|
|
|
|
|
|
2,0
|
3,0
|
|
|
|
|
|
|
|
2,1/2,2
|
3,2
|
|
|
|
|
|
|
|
2,3/2,5
|
3,5
|
|
|
|
|
|
|
|
2,6/2,9
|
4,0
|
|
|
|
|
|
|
|
3,0/3,4
|
4,5
|
|
|
|
|
|
|
|
3,5/3,9
|
5,0
|
|
|
|
|
|
|
|
4,0/4,4
|
5,5
|
|
|
|
|
|
|
|
4,5/4,9
|
6,0
|
|
|
|
|
|
|
|
5,0/5,4
|
6,5
|
|
|
|
|
|
|
|
5,5/5,9
|
7,0
|
|
|
|
|
|
|
|
6,0/6,4
|
8,0
|
|
|
|
|
|
|
|
6,5/7,0
|
9,0
|
1,0
|
|
|
|
|
|
|
|
7,5/8,0
|
10,0
|
|
|
|
|
|
|
|
8,5/9,0
|
11,0
|
|
|
|
|
|
|
|
9,5/10,0
|
12,0
|
|
|
|
|
|
|
|
10,5/11,0
|
13,0
|
|
|
|
|
|
|
|
11,5/12,0
|
14,0
|
|
|
|
|
|
|
|
12,5/13,0
|
15,0
|
|
|
|
|
|
|
|
13,5/14,0
|
16,0
|
1,5
|
|
|
|
|
|
|
|
14,5/15,0
|
17,0
|
|
|
|
|
|
|
|
16,0
|
18,0
|
|
|
|
|
|
|
|
17,0
|
19,0
|
|
|
|
|
|
|
|
18,0
|
20,0
|
|
|
|
|
|
|
|
20,0
|
22,0
|
|
|
|
|
|
|
|
