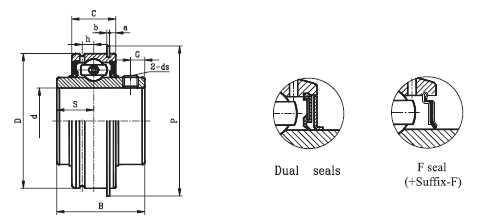

Bearing No.	shaft Dia.		Dimensions(mm)/(in.)										Basic load ratings (N)		Mass(kg)
	d		D	B	C	S	a	b	p	G	h	ds	Dynamic Cr	Static Cor
	(in.)	(mm)	D	B	C	S	a	b	p	G	h	ds	Dynamic Cr	Static Cor
SER202	--	15	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
SER202-10	5/8	--	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
SER203	--	17	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
SER203-11	11/16	--	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
SER204-12	3/4	--	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
SER204	--	20	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
SER205-14	7/8	--	52	34.9	19	13.1	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
SER205-15	15/16	--	52	34.9	19	13.1	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
SER205	--	25	52	34.9	19	13.1	2.38	1.07	57.9	5.5	4.5	M6X1	14000	7880	0.27
SER205-16	1	--	52	34.9	19	13.1	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
SER206-18	1-1/8	--	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
SER206	--	30	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	M6X1	19500	11200	0.39
SER206-19	1-3/16	--	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
SER206-20	1-1/4	--	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
SER207-20	1-1/4	--	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
SER207-21	1-5/16	--	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
SER207-22	1-3/8	--	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
SER207	--	35	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	M8X1	25700	15200	0.61
SER207-23	1-7/16	--	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
SER208-24	1-1/2	--	80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	5/16-24UNF	29600	18200	0.81
SER208-25	1-9/16	--	80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	5/16-24UNF	29600	18200	0.81
SER208	--	40	80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	M8X1	29600	18200	0.81
SER209-26	1-5/8	--	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.90
SER209-27	1-11/16	--	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.90
SER209-28	1-3/4	--	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.90
SER209	--	45	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	M8X1	31850	20800	0.90
SER210-30	1-7/8	--	90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	3/8-24UNF	35100	23200	0.96
SER210-31	1-15/16	--	90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	3/8-24UNF	35100	23200	0.96
SER210	--	50	90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	M10X1.25	35100	23200	0.96
SER211-32	2	--	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
SER211-34	2-1/8	--	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
SER211	--	55	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	M10X1.25	43550	29200	1.41
SER211-35	2-3/16	--	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
SER212-36	2-1/4	--	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
SER212	--	60	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	M10X1.25	47800	32800	1.95
SER212-38	2-3/8	--	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
SER212-39	2-7/16	--	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
SER214-40	2-1/2	--	125	74.6	35	30.2	3.96	2.77	134.7	12	9	7/16-20UNF	60800	45000	2.52
SER214-43	2-11/16	--	125	74.6	35	30.2	3.96	2.77	134.7	12	9	7/16-20UNF	60800	45000	2.52
SER214	--	70	125	74.6	35	30.2	3.96	2.77	134.7	12	9	M12X1.25	60800	45000	2.52
SER215-46	2-7/8	--	130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	7/16-20UNF	66000	49500	2.89
SER215-47	2-15/16	--	130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	7/16-20UNF	66000	49500	2.89
SER215	--	75	130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	M12X1.25	66000	49500	2.89
SER201	--	12	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
SER201-8	1/2	--	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
