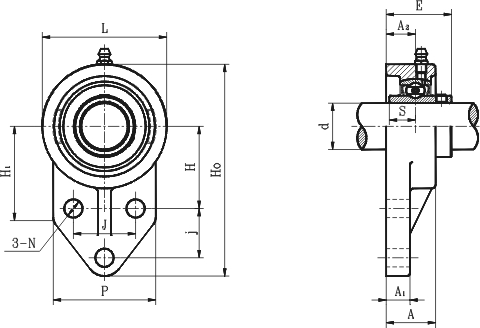

Unit No.	Shaft Dia.		Dimensions(mm)													Bolt Size	Bearing No.	Housing No.	Mass(kg)
	d		H0	L	H1	P	H	j	J	A	A1	A2	N	E	S
	(in.)	(mm)	H0	L	H1	P	H	j	J	A	A1	A2	N	E	S
UCFB202	--	15	104	55	50	49	40	27	30	23.5	10	14	10	29.9	11.5	M8	UC202	FB203	0.42
UCFB203-10	5/8	--	104	55	50	49	40	27	30	23.5	10	14	10	29.9	11.8	M8	UC202-10	FB203	0.41
UCFB203	--	17	104	55	50	49	40	27	30	23.5	10	14	10	29.9	11.5	M8	UC203	FB203	0.41
UCFB203-11	11/16	--	104	55	50	49	40	27	30	23.5	10	14	10	29.9	11.5	M8	UC203-11	FB203	0.41
UCFB204-12	3/4	--	109	60	52	52	42	27	32	25.5	11	15	10	33.3	12.7	M8	UC204-12	FB204	0.62
UCFB204	--	20	109	62	52	52	42	27	32	25.5	11	15	10	33.3	12.7	M8	UC204	FB204	0.62
UCFB205-14	7/8	--	116	68	52	56	45	27	34	27	13	16	10	35.7	14.3	M8	UC205-14	FB205	0.69
UCFB205-15	15/16	--	116	68	52	56	45	27	34	27	13	16	10	35.7	14.3	M8	UC205-15	FB205	0.69
UCFB205	--	25	116	68	52	56	45	27	34	27	13	16	10	35.7	14.3	M8	UC205	FB205	0.69
UCFB205-16	1	--	116	68	52	56	45	27	34	27	13	16	10	35.7	14.3	M8	UC205-16	FB205	0.69
UCFB206-18	1-1/8	--	132	80	55	65	50	29	40	31	13	18	10	40.2	15.9	M8	UC206-18	FB206	0.93
UCFB206	--	30	132	80	55	65	50	29	40	31	13	18	10	40.2	15.9	M8	UC206	FB206	0.93
UCFB206-19	1-3/16	--	132	80	55	65	50	29	40	31	13	18	10	40.2	15.9	M8	UC206-19	FB206	0.93
UCFB206-20	1-1/4	--	132	80	55	65	50	29	40	31	13	18	10	40.2	15.9	M8	UC206-20	FB206	0.93
UCFB207-20	1-1/4	--	144	90	62	70	55	32	46	33	14	19	10	44.4	17.5	M8	UC207-20	FB207	1.3
UCFB207-21	1-5/16	--	144	90	62	70	55	32	46	33	14	19	10	44.4	17.5	M8	UC207-21	FB207	1.3
UCFB207-22	1-3/8	--	144	90	62	70	55	32	46	33	14	19	10	44.4	17.5	M8	UC207-22	FB207	1.3
UCFB207	--	35	144	90	62	70	55	32	46	33	14	19	10	44.4	17.5	M8	UC207	FB207	1.3
UCFB207-23	1-7/16	--	144	90	62	70	55	32	46	33	14	19	10	44.4	17.5	M8	UC207-23	FB207	1.3
UCFB208-24	1-1/2	--	164	100	72	78	60	41	50	35	17	21	12	51.2	19	M10	UC208-24	FB208	1.8
UCFB208-25	1-9/16	--	164	100	72	78	60	41	50	35	17	21	12	51.2	19	M10	UC208-24	FB08	1.8
UCFB208	--	40	164	100	72	78	60	41	50	35	17	21	12	51.2	19	M10	UC208	FB208	1.8
UCFB209-26	1-5/8	--	175	108	76	80	65	43	54	38	16	22	12	52.2	19	M10	UC209-26	FB209	2.0
UCFB209-27	1-11/16	--	175	108	76	80	65	43	54	38	16	22	12	52.2	19	M10	UC209-27	FB209	2.0
UCFB209-28	1-3/4	--	175	108	76	80	65	43	54	38	16	22	12	52.2	19	M10	UC209-28	FB209	2.0
UCFB209	--	45	175	108	76	80	65	43	54	38	16	22	12	52.2	19	M10	M209	FB209	2.0
UCFB210-30	1-7/8	--	184	114	82	86	68	46	58	39	16	22	12	54.6	19	M10	UC210-30	FB210	2.3
UCFB210-31	1-15/16	--	184	114	82	86	68	46	58	39	16	22	12	54.6	19	M10	UC210-31	FB210	2.3
UCFB210	--	50	184	114	82	86	68	46	58	39	16	22	12	54.6	19	M10	UC210	FB210	2.3
UCFB210-32	2	--	184	114	82	86	68	46	58	39	16	22	12	54.6	19	M10	UC210-32	FB210	2.3
UCFB211-32	2	--	207	128	86	90	78	50	62	42.5	18	25	14	58.4	22.2	M12	UC211-32	FB211	--
UCFB211-34	2-1/8	--	207	128	86	90	78	50	62	42.5	18	25	14	58.4	22.2	M12	UC211-34	FB211	--
UCFB211	--	55	207	128	86	90	78	50	62	42.5	18	25	14	58.4	22.2	M12	UC211	FB211	--
UCFB211-35	2-3/16	--	207	128	86	90	78	50	62	42.5	18	25	14	58.4	22.2	M12	UC211-35	FB211	--
UCFB212-36	2-1/4	--	224	140	90	94	84	55	66	47.5	19	29	14	68.7	25.4	M12	UC212-36	FB212	--
UCFB212	--	60	224	140	90	94	84	55	66	47.5	19	29	14	68.7	25.4	M12	UC212	FB212	--
UCFB212-38	2-3/8	--	224	140	90	94	84	55	66	47.5	19	29	14	68.7	25.4	M12	UC212-39	FB212	--
UCFB213-40	2-1/2	--	244	152	95	102	92	60	70	49	20	30	14	69.7	25.4	M12	IC213-40	FB213	--
UCFB213	--	65	244	152	95	102	92	60	70	49	20	30	14	69.7	25.4	M12	UC213	FB213	--
