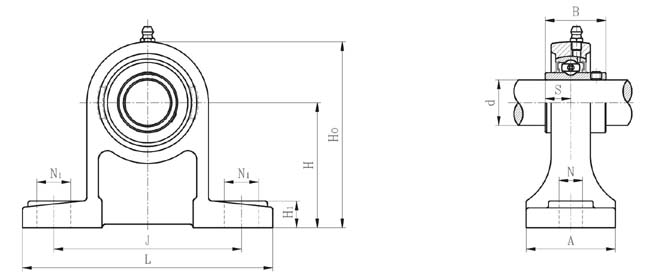

Unit No.	Shaft Dia.		Dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass(kg)
	d		H	J	L	A	N	N1	H1	N0	S	B
	(in.)	(mm)	H	J	L	A	N	N1	H1	N0	S	B
UCPH202		15	70	95	127	40	12	16	13	101	12.7	31	M10	UC202	PH204	0.97
CUPH202-10	5/8		70	95	127	40	12	16	13	101	12.7	31	M10	UC202-10	PH204	0.97
UCPH203		17	70	95	127	40	12	16	13	101	12.7	31	M10	UC203	PH204	0.97
UCPH203-11	11/16		70	95	127	40	12	16	13	101	12.7	31	M10	UC203-11	PH204	0.97
UCPH201S		12	70	95	127	38	12	16	13	97	11.5	27.4	M10	UC201S	PH203	0.80
UCPH201-8S	1/2		70	95	127	38	12	16	13	97	11.5	27.4	M10	UC201-8S	PH203	0.8
UCPH202S		15	70	95	127	38	12	16	13	97	11.5	27.4	M10	UC202S	PH203	0.80
UCPH204-12	3/4		70	95	127	40	12	16	13	101	12.7	31	M10	UC204-12	PH204	0.97
UCPH204		20	70	95	127	40	12	16	13	101	12.7	31	M10	UC204	PH204	0.97
UCPH205-14	7/8		80	105	140	50	13	19	16	114	14.3	34	M10	UC205-14	PH205	1.20
UCPH205-15	15/16		80	105	140	50	13	19	16	114	14.3	34	M10	UC205-15	PH205	1.20
UCPH205		25	80	105	140	50	13	19	16	114	14.3	34	M10	UC205	PH205	1.20
UCPH205-16	1		80	105	140	50	13	19	16	114	14.3	34	M10	UC205-16	PH205	1.20
UCPH206-18	1-1/8		90	121	165	50	17	21	18	130	15.9	38.1	M12	UC206-18	PH206	1.60
UCPH206		30	90	121	165	50	17	21	18	130	15.9	38.1	M12	UC206	PH206	1.60
UCPH206-19	1-3/16		90	121	165	50	17	21	18	130	15.9	38.1	M12	UC206-19	PH206	1.60
UCPH206-20	1-1/4		90	121	165	50	17	21	18	130	15.9	38.1	M12	UC206-20	PH206	1.60
UCPH207-21	1-5/16		95	127	167	60	17	21	19	140	17.5	42.9	M12	UC207-21	PH07	2.10
UCPH207-22	1-3/8		95	127	167	60	17	21	19	140	17.5	42.8	M12	UC207-22	PH207	2.10
UCPH207		35	95	127	167	60	17	21	19	140	17.5	42.9	M12	UC207	PH207	2.10
UCPH207-23	1-7/16		95	127	167	60	17	21	19	140	17.5	42.9	M12	UC207-23	PH207	2.10
UCPH208-24	1-1/2		100	137	184	66	17	21	20	150	19	49.2	M12	UC208-24	PH208	2.70
UCPH208-25	1-9/16		100	137	184	66	17	21	20	150	19	49.2	M12	UC08-25	PH208	2.70
UCPH208		40	100	137	184	66	17	21	20	150	19	49.2	M12	UC208	PH208	2.70
UCPH209-26	1-5/8		105	146	190	70	17	21	20	157	19	49.2	M12	UC209-26	PH209	3.10
UCPH209-27	1-11/16		105	146	190	70	17	21	20	158	19	49.2	M12	UC209-27	PH209	3.10
UCPH209-28	1-3/4		105	146	190	70	17	21	20	158	19	49.2	M12	UC209-28	PH09	3.10
UCPH209		45	105	146	190	70	17	21	20	158	19	49.2	M12	UC209	PH209	3.10
UCPH210-30	1-7/8		110	159	204	70	19	22	22	165	19	51.6	M16	UC210-30	PH210	3.50
UCPH210-31	1-15/16		110	159	204	70	19	22	22	165	19	51.6	M16	UC210-31	PH210	3.50
UCPH210		50	110	159	204	70	19	22	22	165	19	51.6	M16	UC210	PH210	3.50
UCPH210-32	2		110	159	204	70	19	22	22	165	19	51.6	M16	UC210-32	PH210	3.50
UCPH211-32	2		120	171	217	75	19	22	2	181	22.2	55.6	M16	UC211-32	PH211	4.07
UCPH211-34	2-1/8		120	171	217	75	19	22	23	181	22.2	55.6	M16	UC211-34	PH211	4.07
UCPH211		55	120	171	217	75	19	22	23	181	22.2	55.6	M16	UC211	PH211	4.07
UCPH211-35	2-3/16		120	171	217	75	19	22	23	181	22.2	55.6	M16	UC211-35	PH211	4.07
UCPH212-36	2-1/4		130	186	236	80	19	22	24	197	25.4	65.1	M16	UC212-36	PH212
UCPH212		60	130	186	236	80	19	22	24	197	25.4	65.1	M16	UC212	PH212
UCPH212-38	2-3/8		130	186	236	80	19	22	24	197	25.4	65.1	M16	UC212-38	PH212
UCPH212-39	2-7/16		130	186	236	80	19	22	24	197	25.4	65.1	M16	UC212-39	PH212
UCPH213-40	2-1/2		140	203	258	85	23	28	26	213	25.4	65.1	M20	UC213-40	PH213
UCPH213		65	140	203	258	85	23	28	26	213	25.4	65.1	M20	UC213	PH213
UCPH214-44	2-3/4		150	210	266	90	23	28	27	227	30.2	74.6	M20	UC214-44	PH214
UCPH214		70	150	210	266	90	23	28	27	227	30.2	74.6	M20	UC214	PH214
UCPH215-47	2-15/16		160	217	274	95	23	28	28	240	33.3	77.8	M20	UC215-47	PH215
UCPH215		75	160	217	274	95	23	28	28	240	33.3	77.8	M20	UC215	PH215
UCPH215-48	3		160	217	274	95	23	28	28	240	33.3	77.8	M20	UC215-48	PH215
UCPH216		80	170	232	290	100	24	28	30	256	33.3	82.6	M20	UC216	PH216
UCPH202-10S	5/8		70	95	127	38	12	16	13	97	11.5	27.4	M10	UC202-10S	PH203	0.80
UCPH203S		17	70	95	127	38	12	16	13	97	11.5	27.4	M10	UC203	PH203	0.80
