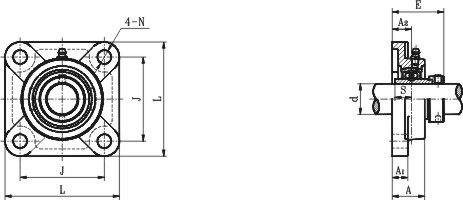

Unit No.	Shaft Dia.		Dimensions(mm)								Bolt Size	Bearing No	Housing No.	Mass(kg)
	d		L	J	A2	A1	A	E	N	S
	(in.)	(mm)	L	J	A2	A1	A	E	N	S
NAF317-52	3-1/4	--	260	204	44	27	74	111.5	31	42	M27	NA317-52	F317	17
NAF317	--	85	260	204	44	27	74	111.5	31	42	M27	NA317	F317	17
NAF318-56	3-1/2	--	280	216	44	30	76	116.3	35	43.6	M30	NA318-56	F318	21
NAF318	--	90	280	216	44	30	76	116.3	35	43.6	M30	NA318	F318	21
NAF319	--	95	290	228	59	30	94	134.5	35	46.8	M30	NA319	F319	23
NAF319-60	3-3/4	--	290	228	59	30	94	134.5	35	46.8	M30	NA319-60	F319	23
NAF320	--	100	310	242	59	32	94	137.6	38	50	M33	NA320	F320	28
NAF320-64	4	--	310	242	59	32	94	137.6	38	50	M33	NA320-64	F320	28
NAF316	--	80	250	196	38	27	68	103.9	31	40.5	M27	NA316	F316	16
NAF305-14	7/8	--	108	80	16	13	29	46.1	16	16.7	M14	NA305-14	F305	1.2
NAF305-15	15/16	--	108	80	16	13	29	46.1	16	16.7	M14	NA305-15	F305	1.2
NAF305	--	25	108	80	16	13	29	46.1	16	16.7	M14	NA305	F305	1.2
NAF305-16	1	--	108	80	16	13	29	46.1	16	16.7	M14	NA305-16	F305	1.2
NAF306-18	1-1/8	--	125	95	18	15	32	50.5	16	17.5	M14	NA306-18	F306	1.7
NAF306	--	30	125	95	18	15	32	50.5	16	17.5	M14	NA306	F306	1.7
NAF306-19	1-3/16	--	125	95	18	15	32	50.5	16	17.5	M14	NA306-19	F306	1.7
NAF307-20	1-1/4	--	135	100	20	16	36	53.3	19	18.3	M16	NA307-20	F307	2.0
NAF307-21	1-5/16	--	135	100	20	16	36	53.3	19	18.3	M16	NA307-21	F307	2.0
NAF307-22	1-3/8	--	135	100	20	16	36	53.3	19	18.3	M16	NA307-22	F307	2.0
NAF307	--	35	135	100	20	16	36	53.3	19	18.3	M16	NA307	F307	2.0
NAF308-24	1-1/2	--	150	112	23	17	40	60.3	19	19.8	M16	NA308-24	F308	2.8
NAF308-25	1-9/16	--	150	112	23	17	40	60.3	19	19.8	M16	NA308-25	F308	2.8
NAF308	--	40	150	112	23	17	40	60.3	19	19.8	M16	NA308	F308	2.8
NAF309-26	1-5/8	--	160	125	25	18	44	63.9	19	19.8	M16	NA309-26	F309	3.6
NAF309-27	1-11/16	--	160	125	25	18	44	63.9	19	19.8	M16	MA309-27	F309	3.6
NAF309-28	1-3/4	--	160	125	25	18	44	63.9	19	19.8	M16	NA309-28	F309	3.6
NAF309	--	45	160	125	25	18	44	63.9	19	19.8	M16	NA309	F309	3.6
NAF310-30	1-7/8	--	175	132	28	20	48	70	23	24.6	M20	NA310-30	F310	4.7
NAF310-31	1-15/16	--	175	132	28	20	48	70	23	24.6	M20	NA310-31	F310	4.7
NAF310	--	50	175	132	28	20	48	70	23	24.6	M20	NA310	F310	4.7
NAF311-32	2	--	185	140	30	20	52	75.2	23	27.8	M20	NA311-32	F311	5.7
NAF311-34	2-1/8	--	185	140	30	20	52	75.2	23	27.8	M20	NA311-34	F311	5.7
NAF311	--	55	185	140	30	20	52	75.2	23	27.8	M20	NA311	F311	5.7
NAF311-35	2-3/16	--	185	140	30	20	52	75.2	23	27.8	M20	NA311-35	F311	5.7
NAF312-36	2-1/4	--	193	150	33	22	56	81.45	23	30.95	M20	NA312-36	F312	6.8
NAF312	--	60	193	150	33	22	56	81.45	23	30.95	M20	NA312	F312	6.8
NAF312-38	2-3/8	--	193	150	33	22	56	81.45	23	30.95	M20	NA312-38	F312	6.8
NAF312-39	2-7/16	--	193	150	33	22	56	81.45	23	30.95	M20	NA312-39	F312	6.8
ANF313-40	2-1/2	--	208	166	33	22	58	86.2	23	32.5	M20	NA313-40	F313	8.3
NAF313	--	65	208	166	33	22	58	86.2	23	32.5	M20	NA313	F313	8.3
NAF314-44	2-3/4	--	226	178	36	25	61	93.95	25	34.15	M22	NA314-44	F314	10.7
NAF314	--	70	226	178	36	25	61	93.95	25	34.15	M22	NA314	F314	10.7
NAF315	--	75	236	184	39	25	66	101.7	25	37.3	M22	NA315	F315	12.24
NAF315-48	3	--	236	184	39	25	66	101.7	25	37.3	M22	NA315-48	F315	12.24
NAF316	--	80	250	196	38	27	68	103.9	31	40.5	M27	N316	F316	16
NAF317-52	3-1/4	--	260	204	44	27	74	111.5	31	42	M27	N317-52	F317	17
NAF317	--	85	260	204	44	27	74	111.5	31	42	M7	NA317	F317	17
NAF318-56	3-1/2	--	280	216	44	30	76	116.3	35	43.6	M30	N318-56	F318	21
NAF318	--	90	280	216	44	30	76	116.3	35	43.6	M30	NA318	F318	21
NAF319	--	95	290	228	59	30	94	134.5	35	46.8	M30	NA319	F319	23
