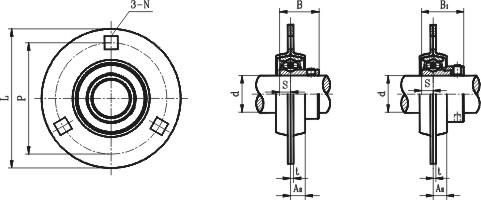

Unit No.	Shaft Dia.		Dimensions(mm)							Bolt size	Bearing No.	Housing No.	Mass(kg)
	d		L	P	A2	t	N	S	B
	(in.)	(mm)	L	P	A2	t	N	S	B
SBPF201	--	12	82	64	7	2	7.5	6	22	M6	SB201	PF203	0.27
SBPF201-8	1/2	--	82	64	7	2	7.5	6	22	1/4	SB201-8	PF203	0.27
SBPF202	--	15	82	64	7	2	7.5	6	22	M6	SB202	PF203	0.27
SBPF202-10	5/8	--	82	64	7	2	7.5	6	22	1/4	SB202-10	PF203	0.27
SBPF203	--	17	82	64	7	2	7.5	6	22	M6	SB203	PF203	0.26
SBPF203-11	11/16	--	82	64	7	2	7.5	6	22	1/4	SB203-11	PF203	0.26
SBPF204-12	3/4	--	91	71	8	2	9	7	25	5/16	SB204-12	PF204	0.3
SBPF204	--	20	91	71	8	2	9	7	25	M8	SB204	PF204	0.3
SBPF205-14	7/8	--	95	76	9	2	9	7.5	27	5/16	SB205-14	PF205	0.38
SBPF205-15	15/16	--	95	76	9	2	9	7.5	27	5/16	SB205-15	PF205	0.38
SBPF205	--	25	95	76	9	2	9	7.5	27	M8	SB205	PF205	0.38
SBPF205-16	1	--	95	76	9	2	9	7.5	27	5/16	SB205-16	PF205	0.38
SBPF206-18	1-1/8	--	113	90	9	2.5	10.5	8	30	3/8	SB206-18	PF206	0.62
SBPF206	--	30	113	90	9	2.5	10.5	8	30	M10	SB206	PF206	0.62
SBPF206-19	1-3/16	--	113	90	9	2.5	10.5	8	30	3/8	SB206-19	PF206	0.62
SBPF206-20	1-1/4	--	113	90	9	2.5	10.5	8	30	3/8	SB206-20	PF206	0.62
SBPF207-20	1-1/4	--	122	100	10	2.5	10.5	8.5	32	3/8	SB207-20	PF207	0.82
SBPF207-21	1-5/16	--	122	100	10	2.5	10.5	8.5	32	3/8	SB207-21	PF207	0.82
SBPF207-22	1-3/8	--	122	100	10	2.5	10.5	8.5	32	3/8	SB207-22	PF207	0.82
SBPF207	--	35	122	100	10	2.5	10.5	8.5	32	M10	SB207	PF207	0.82
SBPF207-23	1-7/16	--	122	100	10	2.5	10.5	8.5	32	3/8	SB207-23	PF207	0.82
SAPF201	--	12	82	64	7	2	7.5	6.5	28.6	M6	SA201	PF203	0.29
SAPF201-8	1/2	--	82	64	7	2	7.5	6.5	28.6	1/4	SA201-8	PF203	0.29
SAPF202	--	15	82	64	7	2	7.5	6.5	28.6	M6	SA202	PF203	0.29
SAPF202-10	5/8	--	82	64	7	2	7.5	6.5	28.6	1/4	SA202-10	PF203	0.29
SAPF203	--	17	82	64	7	2	7.5	6.5	28.6	M6	SA203	PF203	0.28
SAPF203-11	11/16	--	82	64	7	2	7.5	6.5	28.6	1/4	SA203-11	PF203	0.28
SAPF204-12	3/4	--	91	71	8	2	9	7.5	30.9	5/16	SA204-12	PF204	0.31
SAPF204	--	20	91	71	8	2	9	7.5	30.9	M8	SA204	PF204	0.31
SAPF205-14	7/8	--	95	76	9	2	9	7.5	30.9	5/16	SA205-14	PF205	0.41
SAPF205-15	15/16	--	95	76	9	2	9	7.5	30.9	5/16	SA205-15	PF205	0.41
SAPF205	--	25	95	76	9	2	9	7.5	30.9	M8	SA205	PF205	0.41
SAPF205-16	1	--	95	76	9	2	9	7.5	30.9	5/16	SA206-16	PF205	0.41
SAPF206-18	1-1/8	--	113	90	9	2.5	10.5	9	35.7	3/8	SA206-18	PF206	0.67
SAPF206	--	30	113	90	9	2.5	10.5	9	35.7	M10	SA206	PF206	0.67
SAPF206-19	1-3/16	--	113	90	9	2.5	10.5	9	35.7	3/8	SA206-19	PF206	0.67
SAPF206-20	1-1/4	--	113	90	9	2.5	10.5	9	35.7	3/8	SA206-20	PF206	0.67
SAPF207-20	1-1/4	--	122	100	10	2.5	10.5	9.5	38.9	3/8	SA207-20	PF207	0.87
SAPF207-21	1-5/16	--	122	100	10	2.5	10.5	9.5	38.9	3/8	SA207-21	PF207	0.87
SAPF207-22	1-3/8	--	122	100	10	2.5	10.5	9.5	38.9	3/8	SA207-22	PF207	0.87
SA207	--	35	122	100	10	2.5	10.5	9.5	38.9	M10	SA207	PF207	0.87
SAPF207-23	1-7/16	--	122	100	10	2.5	10.5	9.5	38.9	3/8	SA207-23	PF207	0.87
SBPF208-24	1-1/2	--	148	119	12	3.5	13.5	9	34	1/2	SB208-24	PF208	1.1
SBPF208-25	1-9/16	--	148	119	12	3.5	13.5	9	34	1/2	SB208-25	PF208	1.1
SBPF208	--	40	148	119	12	3.5	13.5	9	34	M12	SB208	PF208	1.1
SAPF208-24	1-1/2	--	148	119	12	3.5	13.5	11	43.7	1/2	SA208-24	PF208	1.3
SAPF208-25	1-9/16	--	148	119	12	3.5	13.5	11	43.7	1/2	SA208-25	PF208	1.3
SAPF208	--	40	148	119	12	3.5	13.5	11	43.7	M12	SA208	PF208	1.3
