Asteknik Hırdavat - Rulman Çeşitleri, Rulmanlar, Rulman, TR Markalı Yuvarlak Tipli Yataklar, Nafc200

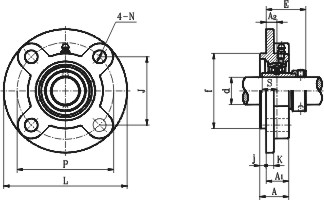

Unit No.	Shaft Dia		Dimensions(mm)												Bolt Size	Bearing No.	Housing No.	Mass(kg)
	d		L	P	A2	A1	A	j	K	N	J	f	S	E
	(in.)	(mm)	L	P	A2	A1	A	j	K	N	J	f	S	E
NAFC202S		15	90	70	10	19	23	4	5	10	49.5	55	13.9	33.4	M8	NA202S	FC203	0.6
NAFC202-10S	5/8		90	70	10	19	23	4	5	10	49.5	55	13.9	33.4	M8	NA202-10S	FC203	0.6
NAFC203S		17	90	70	10	19	23	4	5	10	49.5	55	13.9	33.4	M8	NA203S	FC203	0.6
NAFC203-11S	11/16		90	70	10	19	23	4	5	10	49.5	55	13.9	33.4	M8	NA203-11S	FC203	0.6
NAFC204-12	3/4		100	78	10	20.5	25.5	5	6	11.5	55.1	62	17	36.5	M10	NA204-12	FC204	0.83
NAFC204		20	100	78	10	20.5	25.5	5	6	11.5	55.1	62	17	36.5	M10	NA204	FC204	0.83
NAFC205-14	7/8		115	90	10	21	27	6	7	12	63.6	70	17.4	36.9	M10	NA205-14	FC205	1.1
NAFC205-15	15/16		115	90	10	21	27	6	7	12	63.6	70	17.4	36.9	M10	NA205-15	FC205	1.1
NAFC205		25	115	90	10	21	27	6	7	12	63.6	70	17.4	36.9	M10	NA205	FC205	1.1
NAFC205-16	1		115	90	10	21	27	6	7	12	63.6	70	17.4	36.9	M10	NA205-16	FC205	1.1
NAFC206-18	1-1/8		125	100	10	23	31	8	8	12	70.7	80	18.2	40.1	M10	NA206-18	FC206	1.5
NAFC206		30	125	100	10	23	31	8	8	12	70.7	80	18.2	40.1	M10	NA206	FC206	1.5
NAFC206-19	1-3/16		125	100	10	23	31	8	8	12	70.7	80	18.2	40.1	M10	NA206-19	FC206	1.5
NAFC206-20	1-1/4		125	100	10	23	31	8	8	12	70.7	80	18.2	40.1	M10	NA206-20	FC206	1.5
NAFC207-20	1-1/4		135	110	11	26	34	8	9	14	77.8	90	18.8	43.3	M12	NA207-20	FC207	1.8
NAFC207-21	1-5/16		135	110	11	26	34	8	9	14	77.8	90	18.8	43.3	M12	NA207-21	FC207	1.8
NAFC207-22	1-3/8		135	110	11	26	34	8	9	14	77.8	90	18.8	43.3	M12	NA207-22	FC207	1.8
NAFC207		35	135	110	11	26	34	8	9	14	77.8	90	18.8	43.3	M12	NA207	FC207	1.8
NAFC207-23	1-7/16		135	110	11	26	34	8	9	14	77.8	90	18.8	43.3	M12	NA207-23	FC207	1.8
NAFC208-24	1-1/2		145	120	11	26	36	10	9	14	84.8	100	21.4	45.9	M12	NA208-24	FC208	2.2
NAFC208-25	1-9/16		145	120	11	26	36	10	9	14	84.8	100	21.4	45.9	M12	NA208-25	FC208	2.2
NAFC208		40	145	120	11	26	36	10	9	14	84.8	100	21.4	45.9	M12	NA208	FC208	2.2
NAFC209-26	1-5/8		160	132	10	26	38	12	10	16	93.3	105	21.4	44.9	M14	NA209-26	FC209	2.8
NAFC209-27	1-11/16		160	132	10	26	38	12	10	16	93.3	105	21.4	44.9	M14	NA209-27	FC209	2.8
NAFC209-28	1-3/4		160	132	10	26	38	12	10	16	93.3	105	21.4	44.9	M14	NA209-28	FC209	2.8
NAFC209		45	160	132	10	26	38	12	10	16	93.3	105	21.4	44.9	M14	NA209	FC209	2.8
NAFC210-30	1-7/8		165	138	10	28	40	12	14	16	97.6	110	24.6	48.1	M14	NA210-30	FC210	3.3
NAFC210-31	1-15/16		165	138	10	28	40	12	14	16	97.6	110	24.6	48.1	M14	NA210-31	FC210	3.3
NAFC210		50	165	138	10	28	40	12	14	16	97.6	110	24.6	48.1	M14	NA210	FC210	3.3
NAFC211-32	2		185	150	13	30	42	12	13	19	106.1	125	27.7	56.6	M16	NA211-32	FC211	4.5
NAFC211-34	2-1/8		185	150	13	30	42	12	13	19	106.1	125	27.7	56.6	M16	NA211-34	FC211	4.5
NAFC211		55	185	150	13	30	42	12	13	19	106.1	125	27.7	56.6	M16	NA211	FC211	4.5
NAFC211-35	2-3/16		185	150	13	30	42	12	13	19	106.1	125	27.7	56.6	M16	NA211-35	FC211	4.5
NAFC212-36	2-1/4		195	160	17	36	48	12	15	19	113.1	135	30.9	63.8	M16	NA212-36	FC212	5.7
NAFC212		60	195	160	17	36	48	12	15	19	113.1	135	30.9	63.8	M16	NA212	FC212	5.7
NAFC212-38	2-3/8		195	160	17	36	48	12	15	19	113.1	135	30.9	63.8	M16	NA212-38	FC212	5.7
NAFC212-39	2-7/16		195	160	17	36	48	12	15	19	113.1	135	30.9	63.8	M16	NA212-39	FC212	5.7
NAFC213-40	2-1/2		205	170	16	35	49	14	15	19	120.2	145	34.1	67.6	M16	NA213-40	FC213	6.5
NAFC213		65	205	170	16	35	49	14	15	19	120.2	145	34.1	67.6	M16	NA213	FC213	6.5
NAFC214-44	2-3/4		215	177	17	38	52	14	16	19	125.1	150	34.1	68.6	M16	MA214-44	FC214	7.2
NAFC214		70	215	177	17	38	52	14	16	19	125.1	150	34.1	68.6	M16	NA214	FC214	7.2
NAFC215		75	220	184	17	39	55	16	17	19	130.1	160	37.3	72.8	M16	NA215	FC215	8
NAFC215-48	3		220	184	18	39	55	16	17	19	130.1	160	37.3	72.8	M16	NA215-48	FC215	8
NAFC216		80	240	200	18	42	58	16	18	23	141.4	170	37.3	75.9	M20	NA216	FC216	9.53
NAFC201S		12	90	70	10	19	23	4	5	10	49.5	55	13.9	33.4	M8	NA201S	FC203	0.6
NAFC201-8S	1/2		90	70	10	19	23	4	5	10	49.5	55	13.9	33.4	M8	NA201-8S	FC203	0.6
NAFC201		12	100	78	10	20.5	25.5	5	6	11.5	55.1	62	17	36.5	M10	NA201	FC204	0.83
NAFC201-8	1/2		100	78	10	20.5	25.5	5	6	11.5	55.1	62	17	36.5	M10	NA201-8	FC204	0.83
NAFC202		15	100	78	10	20.5	25.5	5	6	11.5	55.1	62	17	36.5	M10	NA202	FC204	0.83
NAFC202-10	5/8		100	78	10	20.5	25.5	5	6	11.5	55.1	62	17	36.5	M10	NA202-10	FC204	0.83
