Asteknik Hırdavat - Rulman Çeşitleri, Rulmanlar, TR Markalı Bombeli Yataklı Rulmanlar, NA200

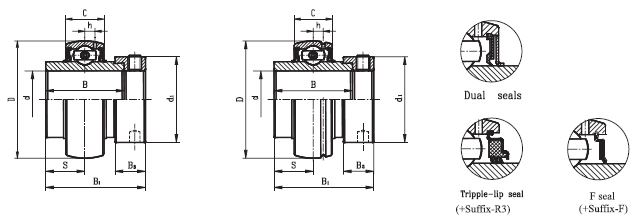

Bearing No.	shaft Dia.		Dimensions(mm)/(in.)								Eccentric collar	Basic load ratings (N)		Mass(kg)
	d		D	C	B	S	B1	B3	h	d1		Dynamic Cr	Static Cor
	(in.)	(mm)	D	C	B	S	B1	B3	h	d1		Dynamic Cr	Static Cor
HC202S	--	15	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A202S	9550	4780	0.22
HC202-10S	5/8	--	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A202-10S	9550	4780	0.21
HC203S	--	17	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A203S	9550	4780	0.20
HC203-11S	11/16	--	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A203-11S	9550	4780	0.19
HC204-12	3/4	--	47	16	34	17	43.5	13.5	4.4	33.3	A204-12	12800	6650	0.23
HC204	--	20	47	16	34	17	43.5	13.5	4.4	33.3	A204-12	12800	6650	0.22
NA205-14	7/8	--	52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205-14	14000	7880	0.29
HC205-15	15/16	--	52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205-15	14000	7880	0.27
HC205	--	25	52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205	14000	7880	0.25
HC205-16	1	--	52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205-16	14000	7880	0.24
NA206-18	1-1/8	--	62	19	36.4	18.2	48.3	15.9	5	44.5	A206-18	19500	11200	0.43
HC206	--	30	62	19	36.4	18.2	48.3	15.9	5	44.5	A206	19500	11200	0.41
HC206-19	1-3/16	--	62	19	36.4	18.2	48.3	15.9	5	44.5	A206-19	19500	11200	0.40
HC206-20	1-1/4	--	62	19	36.4	18.2	48.3	15.9	5	44.5	A206-20	19500	11200	0.38
NA207-20	1-1/4	--	72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-20	25700	15200	0.68
HC207-21	1-5/16	--	72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-21	25700	15200	0.65
HC207-22	1-3/8	--	72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-22	25700	15200	0.61
HC207	--	35	72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207	25700	15200	0.60
HC207-23	1-7/16	--	72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-23	25700	15200	0.58
NA208-24	1-1/2	--	80	21	42.8	21.4	56.3	18.3	6.3	60.3	A208-24	29600	18200	0.83
HC208-25	1-9/16	--	80	21	42.8	21.4	56.3	18.3	6.3	60.3	A208-25	29600	18200	0.79
HC208	--	40	80	21	42.8	21.4	56.3	18.3	6.3	60.3	A208	29600	18200	0.78
NA209-26	1-5/8	--	85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209-26	31850	20800	0.96
HC209-27	1-11/16	--	85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209-27	31850	20800	0.91
HC209-28	1-3/4	--	85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209-28	31850	20800	0.87
HC209	--	45	85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209	31850	20800	0.85
NA210-30	1-7/8	--	90	23	49.2	24.6	62.7	18.3	6.5	69.9	A210-30	35100	23200	1.10
HC210-31	1-15/16	--	90	23	49.2	24.6	62.7	18.3	6.5	69.9	A210-31	35100	23200	1.04
HC210	--	50	90	23	49.2	24.6	62.7	18.3	6.5	69.9	A210	35100	23200	1.01
NA211-32	2	--	100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211-32	43550	29200	1.58
HC211-34	2-1/8	--	100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211-34	43550	29200	1.44
HC211	--	55	100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211	43550	29200	1.39
HC211-35	2-3/16	--	100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211-35	43550	29200	1.36
NA212-36	2-1/4	--	110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212-36	47800	32800	2.03
HC212	--	60	110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212	47800	32800	1.87
HC212-38	2-3/8	--	110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212-38	47800	32800	1.85
HC212-39	2-7/16	--	110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212-39	47800	32800	1.76
NA213-40	2-1/2	--	120	28	68.2	34.1	85.7	23.5	8	86	A213-40	57200	40000	2.51
HC213	--	65	120	28	68.2	34.1	85.7	23.5	8	86	A213	57200	40000	2.41
NA214-44	2-3/4	--	125	30	68.2	34.1	85.7	23.5	9	96.8	A214-44	60800	45000	2.58
HC214	--	70	125	30	68.2	34.1	85.7	23.5	9	96.8	A214	60800	45000	2.57
NA215	--	75	130	30	74.6	37.3	92.1	23.9	9	102	A215	66000	49500	2.84
HC215-48	3	--	130	30	74.6	37.3	92.1	23.9	9	102	A215-48	66000	49500	2.74
NA216	--	80	140	33	74.6	37.3	95.2	27	10.3	110	A216	71500	54200	3.12
NA201S	--	12	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A201S	9550	4780	0.23
HC201-8S	1/2	--	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A201-8S	9550	4780	0.23
NA201	--	12	47	16	34	17	43.5	13.5	4.4	33.3	A201	12800	6650	0.28
HC201-8	1/2	--	47	16	34	17	43.5	13.5	4.4	33.3	A201-8	12800	6650	0.27
HC202	--	15	47	16	34	17	43.5	13.5	4.4	33.3	A202	12800	6650	0.26
HC202-10	5/8	--	47	16	34	17	43.5	13.5	4.4	33.3	A202-10	12800	6650	0.25
