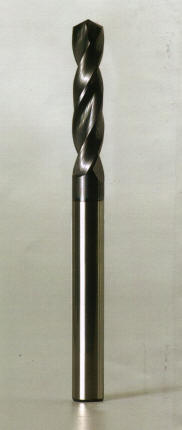

ASTOOL KARBÜR 3D S ALINLI MATKAP UCU |
|
Uzun ve Kaplamalı - SBL Serisi |
|
|
SBL Serisi / Series |
|
Kod |
Teknik Özellikler |
|
Kılavuz Ölçüleri |
Ağız Çapı |
Helis Boyu |
Şaft Çapı |
Tam Boy |
|

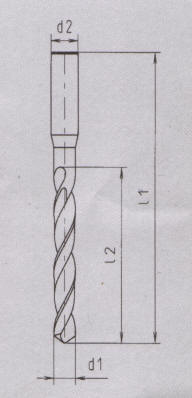

d1 m7 |
L2 |
d2 h6 |
L1 |
|
060 |
- |
6,0 |
30 |
06 |
75 |
|
065 |
9,16 |
6,5 |
35 |
08 |
80 |
|
066 |
5/16" UNC |
6,6 |
35 |
08 |
80 |
|
068 |
M8 |
6,8 |
35 |
08 |
80 |
|
070 |
- |
7,0 |
35 |
08 |
80 |
|
072 |
- |
7,2 |
35 |
08 |
80 |
|
075 |
- |
7,5 |
35 |
08 |
80 |
|
079 |
3,8" |
7,9 |
35 |
08 |
80 |
|
080 |
- |
8,0 |
35 |
08 |
80 |
|
085 |
M10 |
8,5 |
47 |
10 |
100 |
|
087 |
1/8" NPT |
8,7 |
47 |
10 |
100 |
|
088 |
R 1/8" |
8,8 |
47 |
10 |
100 |
|
090 |
- |
9,0 |
47 |
10 |
100 |
|
094 |
7/16" UNC |
9,4 |
47 |
10 |
100 |
|
095 |
- |
9,5 |
47 |
10 |
100 |
|
099 |
7/16" UNF |
9,9 |
47 |
10 |
100 |
|
100 |
- |
10,0 |
47 |
10 |
100 |
|
102 |
M12 |
10,2 |
50 |
12 |
104 |
|
105 |
1/2" |
10,5 |
50 |
12 |
104 |
|
108 |
1/2" UNC |
10,8 |
50 |
12 |
104 |
|
110 |
- |
11,0 |
50 |
12 |
104 |
|
111 |
1/4 NPT |
11,1 |
50 |
12 |
104 |
|
115 |
- |
11,5 |
50 |
12 |
104 |
|
120 |
M14 |
12,0 |
50 |
12 |
104 |
|
125 |
- |
12,5 |
54 |
14 |
104 |
|
129 |
9/16" UNF |
12,9 |
54 |
14 |
104 |
|
130 |
- |
13,0 |
54 |
14 |
104 |
|
135 |
5/8" UNC |
13,5 |
54 |
14 |
104 |
|
140 |
M16 |
14,0 |
54 |
14 |
104 |
|
145 |
- |
14,5 |
65 |
16 |
120 |
|
150 |
- |
15,0 |
65 |
16 |
120 |
|
153 |
R 3/8" |
15,3 |
65 |
16 |
120 |
|
155 |
- |
15,5 |
65 |
16 |
120 |
|
160 |
- |
16,0 |
65 |
16 |
120 |
|
165 |
3/4 UNC |
16,5 |
70 |
18 |
135 |
|
170 |
- |
17,0 |
70 |
18 |
135 |
|
175 |
M20 |
17,5 |
70 |
18 |
135 |
|
180 |
- |
18 |
70 |
18 |
135 |
|
185 |
- |
18,5 |
75 |
20 |
140 |
|
190 |
R 1/2" |
19 |
75 |
20 |
140 |
|
195 |
7/8" UNC |
19,5 |
75 |
20 |
140 |
|
200 |
- |
20 |
75 |
20 |
140 |
|
| |
|
| |
|
|
|
|
|
