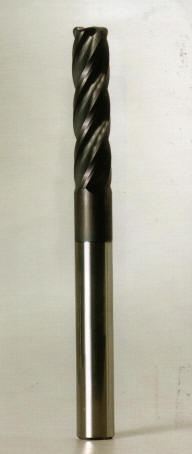

ASTOOL KARBÜR KÖŞE RADÜS FREZE |
|
Uzun ve Kaplamalı - SKRLT Serisi |
|
|
|
|
Sipariş Kodu |
 |
Teknik Özellikler |
 |
 |
 |
Ağız Çapı |
Helis Boyu |
Şaft Çapı |
Tam Boy |
|
Z=2 |
Z=3 |
Z=4 |

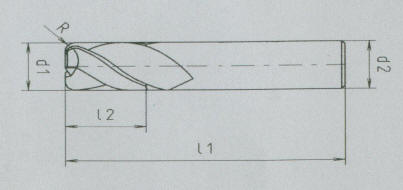

d1 h10 |
L2 |
d2 h6 |
L1 |
|
0302-05 |
0303-05 |
0304-05 |
0,5 |
03 |
15 |
03 |
50 |
|
0402-05 |
0403-05 |
0404-05 |
0,5 |
04 |
20 |
04 |
60 |
|
0402-10 |
0403-10 |
0404-10 |
1,0 |
04 |
20 |
04 |
60 |
|
0502-05 |
0503-05 |
0504-05 |
0,5 |
05 |
25 |
05 |
75 |
|
0502-10 |
0503-10 |
0504-10 |
1,0 |
05 |
25 |
05 |
75 |
|
0602-05 |
0603-05 |
0604-05 |
0,5 |
06 |
30 |
06 |
75 |
|
0602-10 |
0603-10 |
0604-10 |
1,0 |
06 |
30 |
06 |
75 |
|
0802-05 |
0803-05 |
0804-05 |
0,5 |
08 |
35 |
08 |
100 |
|
0802-10 |
0803-10 |
0804-10 |
1,0 |
08 |
35 |
08 |
100 |
|
0802-20 |
0803-20 |
0804-20 |
2,0 |
08 |
35 |
08 |
100 |
|
1002-05 |
1003-05 |
1004-05 |
0,5 |
10 |
40 |
10 |
100 |
|
1002-10 |
1003-10 |
1004-10 |
1,0 |
10 |
40 |
10 |
100 |
|
1002-20 |
1003-20 |
1004-20 |
2,0 |
10 |
40 |
10 |
100 |
|
1202-05 |
1203-05 |
1204-05 |
0,5 |
12 |
45 |
12 |
100 |
|
1202-10 |
1203-10 |
1204-10 |
1,0 |
12 |
45 |
12 |
100 |
|
1202-20 |
1203-20 |
1204-20 |
2,0 |
12 |
45 |
12 |
100 |
|
1602-05 |
1603-05 |
1604-05 |
0,5 |
16 |
45 |
16 |
104 |
|
1602-10 |
1603-10 |
1604-10 |
1,0 |
16 |
45 |
16 |
104 |
|
1602-20 |
1603-20 |
1604-20 |
2,0 |
16 |
45 |
16 |
104 |
|
|
|
|
|
SKRLT Serisi / Series |
|
|
|
 |
|
|
|
